Title: Height CSV Quintile Integration

Overview: Add new male/female height CSV inputs to KevinHall dynamic model parsing while preserving legacy HeightSlope/HeightStdDev fields, then apply height slope/std by adjustment income stratum and keep final output income categories unchanged.

Work items

Status	Item
Done	Add optional KevinHall height CSV fields to v1/v2 schemas while preserving legacy HeightSlope/HeightStdDev support.
Done	Implement KevinHall parser logic to read slope/std CSVs, validate row counts, and fallback to legacy scalar fields.
Done	Update KevinHall runtime/model definition to select height slope/std by income adjustment stratum before final category remap.
Done	Add tests for scalar backward compatibility, single-row broadcast, multi-row strata mapping, and invalid row-count errors.
Done	Update KevinHall sample dynamic model fixture(s) to show new CSV input format.

Goal

Support new height_female.csv and height_male.csv inputs in KevinHall dynamic model config, with either:

• 1 row (slope, std) broadcast to all adjustment strata, or
• multiple rows mapped by row order to strata 1..N (N = adjustment_income_stratum_count).

Keep existing HeightSlope / HeightStdDev JSON fields working for backward compatibility.

Person Lifecycle Walkthrough (with new height quintile logic)

1) Start-of-run initialization (generate_risk_factors)

• Current behavior
  • KevinHall initializes nutrient intake, energy intake, and weight for everyone.
  • Weight is globally adjusted to expected means.
  • Height is initialized from expected height, current weight, sex-specific HeightSlope, and sex-specific HeightStdDev.
• With new height CSV
  • For each person, choose height params by (sex, income_adjustment_stratum):
    • If CSV has N rows: use row stratum_index.
    • If CSV has 1 row: broadcast that row to all strata.
    • If no CSV: fallback to legacy scalar JSON values.
  • Then compute and store:
    • Height_residual using selected std.
    • Height using selected slope/std and weight power mean.
• Income mapping order to preserve
  • Use adjustment strata (adjustment_income_stratum_count, e.g. 5) for quintile-based height selection.
  • Keep final person.income categories from project requirements (3 or 4) as downstream output buckets.

2) Yearly update (update_risk_factors) split by age

• Newborns (age == 0)
  • Reinitialize nutrient/energy/weight.
  • Apply newborn weight adjustment.
  • Initialize height and KevinHall state.
  • New logic: height params selected by quintile/broadcast fallback before setting height.
• Children/adolescents (0 < age < 19)
  • Update nutrient/energy/weight with pre-19 branch.
  • Apply scenario adjustment to weight/state.
  • Recompute height (update_height) each step.
  • New logic: update_height selects stratum-based slope/std before computing height.
• Adults (age >= 19)
  • Weight evolves through the full Kevin Hall run and scenario adjustment.
  • Height is not in the under-19 update branch.
  • No new height update behavior unless future requirements explicitly extend adult height updates.

3) 5-strata adjustment with 4-category output (example)

• If adjustment_income_stratum_count = 5 and project_requirements.income.categories = 4:
  • Assign people into 5 rank-balanced adjustment strata from continuous income.
  • Apply height quintile parameters using those 5 strata.
  • Reassign final reporting income categories to 4 buckets.
  • Outputs/channels remain 4-category, but height assignment benefited from 5-strata resolution.

Flowchart

flowchart TD
    runStart[RunStepStart] --> modeCheck{Phase}
    modeCheck -->|Generate| initAll[InitNutrientEnergyWeightAll]
    modeCheck -->|Update| updateSplit[SplitNewbornVsNonNewborn]

    initAll --> weightAdjust[AdjustWeightToExpected]
    weightAdjust --> strataAssign[AssignIncomeAdjustmentStrataN]
    strataAssign --> heightInit[InitHeightUsingSexAndStratum]
    heightInit --> finalIncomeInit[AssignFinalIncomeCategories3Or4]
    finalIncomeInit --> bmiInit[ComputeBMI]

    updateSplit --> newbornPath[NewbornAge0]
    updateSplit --> nonNewbornPath[NonNewbornAgeGT0]

    newbornPath --> newbornWeight[InitAndAdjustNewbornWeight]
    newbornWeight --> newbornStrata[AssignIncomeAdjustmentStrataN]
    newbornStrata --> newbornHeight[InitHeightUsingSexAndStratum]
    newbornHeight --> newbornIncome[AssignFinalIncomeCategories3Or4]
    newbornIncome --> newbornBmi[ComputeBMI]

    nonNewbornPath --> ageGate{AgeL<9}
    ageGate -->|Yes| childWeight[UpdateWeightPre19]
    ageGate -->|No| adultWeight[RunKevinHallAdultWeight]
    childWeight --> childStrata[AssignIncomeAdjustmentStrataN]
    childStrata --> childHeight[UpdateHeightUsingSexAndStratum]
    childHeight --> childIncome[AssignFinalIncomeCategories3Or4]
    childIncome --> childBmi[ComputeBMI]
    adultWeight --> adultStrata[AssignIncomeAdjustmentStrataN]
    adultStrata --> adultIncome[AssignFinalIncomeCategories3Or4]
    adultIncome --> adultBmi[ComputeBMI]

Implementation Steps

• Extend KevinHall dynamic model schema to allow optional CSV file blocks for male/female height parameters in addition to legacy scalar fields.
  • Update [C:/healthgps/schemas/v2/config/models/kevinhall.json](C:/healthgps/schemas/v2/config/models/kevinhall.json)
  • Update [C:/healthgps/schemas/v1/config/models/kevinhall.json](C:/healthgps/schemas/v1/config/models/kevinhall.json)
• Add parser support for new CSV inputs in KevinHall model loading.
  • Read HeightCsv.Female / HeightCsv.Male (or final agreed field names) as CSV metadata blocks via existing CSV helpers in [C:/healthgps/src/HealthGPS.Input/model_parser.cpp](C:/healthgps/src/HealthGPS.Input/model_parser.cpp).
  • Parse columns slope and std (row-order mapping).
  • Validate row count:
    • 1 row => broadcast to all adjustment strata.
    • N rows => map row i to stratum i+1.
    • otherwise => validation error.
  • Fallback precedence:
    1. New CSV input if present.
    2. Legacy HeightSlope/HeightStdDev scalar values if CSV absent.
• Extend KevinHall model definition/runtime data structures to carry either scalar or per-stratum height parameters.
  • Update types in [C:/healthgps/src/HealthGPS/kevinhall_model.h](C:/healthgps/src/HealthGPS/kevinhall_model.h) and relevant constructor/definition wiring in [C:/healthgps/src/HealthGPS.Input/model_parser.cpp](C:/healthgps/src/HealthGPS.Input/model_parser.cpp).
• Apply height assignment using income_adjustment_stratum before final income category remap.
  • Reuse existing stratum assignment pattern (already used by other factor adjustments) from static model flow in [C:/healthgps/src/HealthGPS/static_linear_model.cpp](C:/healthgps/src/HealthGPS/static_linear_model.cpp) as behavioral reference.
  • In KevinHall height logic (generate/update paths), select slope/std by person’s adjustment stratum when available; otherwise use broadcast/scalar defaults.
  • Preserve downstream final income category behavior (project_requirements.income.categories) unchanged.
• Add/adjust tests for both backward compatibility and quintile behavior.
  • Update/add tests near [C:/healthgps/src/HealthGPS.Tests/KevinHallWeightValidation.Test.cpp](C:/healthgps/src/HealthGPS.Tests/KevinHallWeightValidation.Test.cpp) and related KevinHall input tests.
  • Cover scenarios:
    • Legacy scalar-only config still produces prior behavior.
    • CSV single-row broadcast works.
    • CSV multi-row row-order mapping works for N strata.
    • Invalid row count throws clear error.
    • Mixed male/female CSV content handled independently.
• Update sample config/input-data docs fixture(s) to demonstrate new format while keeping legacy fields in examples for compatibility.
  • Start with KevinHall fixture under [C:/healthgps/input-data/data/KevinHall_FINCH/dynamic_model.json](C:/healthgps/input-data/data/KevinHall_FINCH/dynamic_model.json).

Example console output

Income-stratum assignment (static model) feeds which height CSV row/params are used. Height then prints stratum and final-income summary tables on generate (same gating as weight).

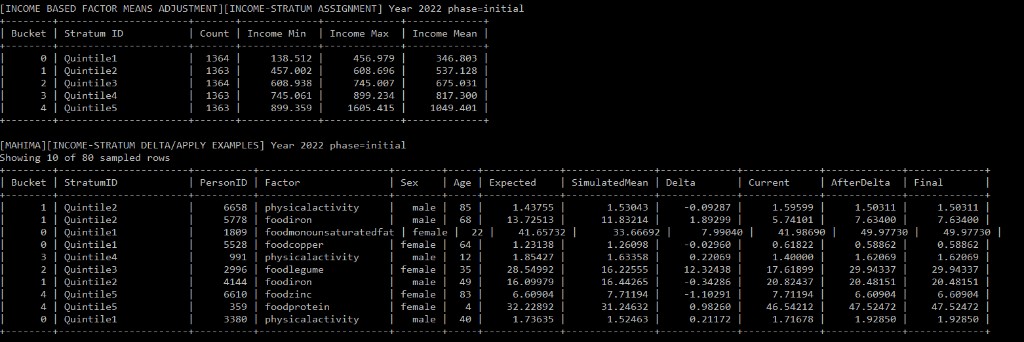

Income-stratum assignment buckets and sampled factor delta/apply rows (initial year)

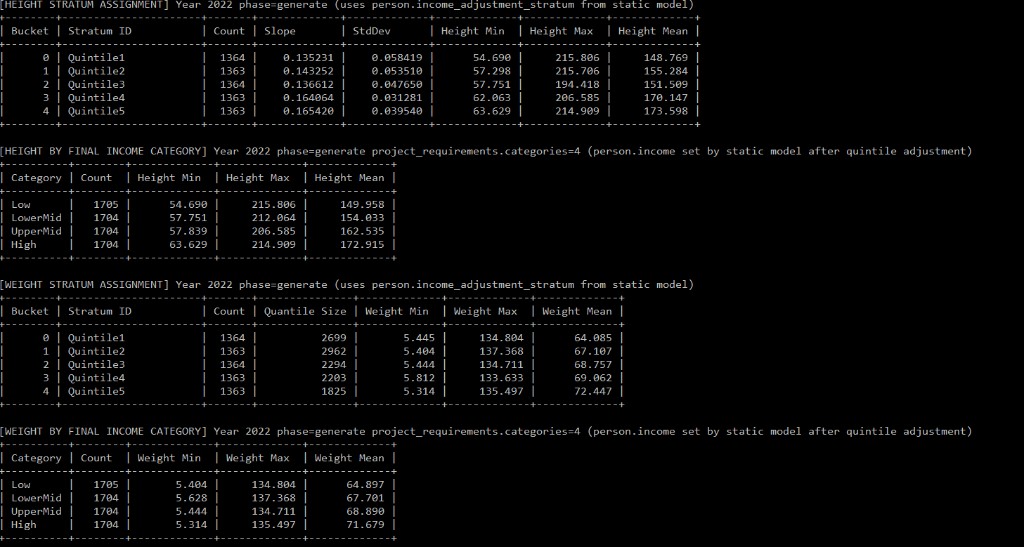

Height stratum assignment and height by final income category (year 2022, phase=generate); weight tables appear in the same log

Validation Strategy

• Build and run targeted KevinHall tests.
• Run any config/schema validation tests that exercise KevinHall dynamic model parsing.
• Spot-check one end-to-end run where adjustment strata count differs from final income categories (e.g., 5 -> 4) to confirm height uses stratum values during assignment while outputs remain in configured final categories.

---

Author: Mahima Ghosh
